XT950 Bore Alignment
Versatile, easy and precise

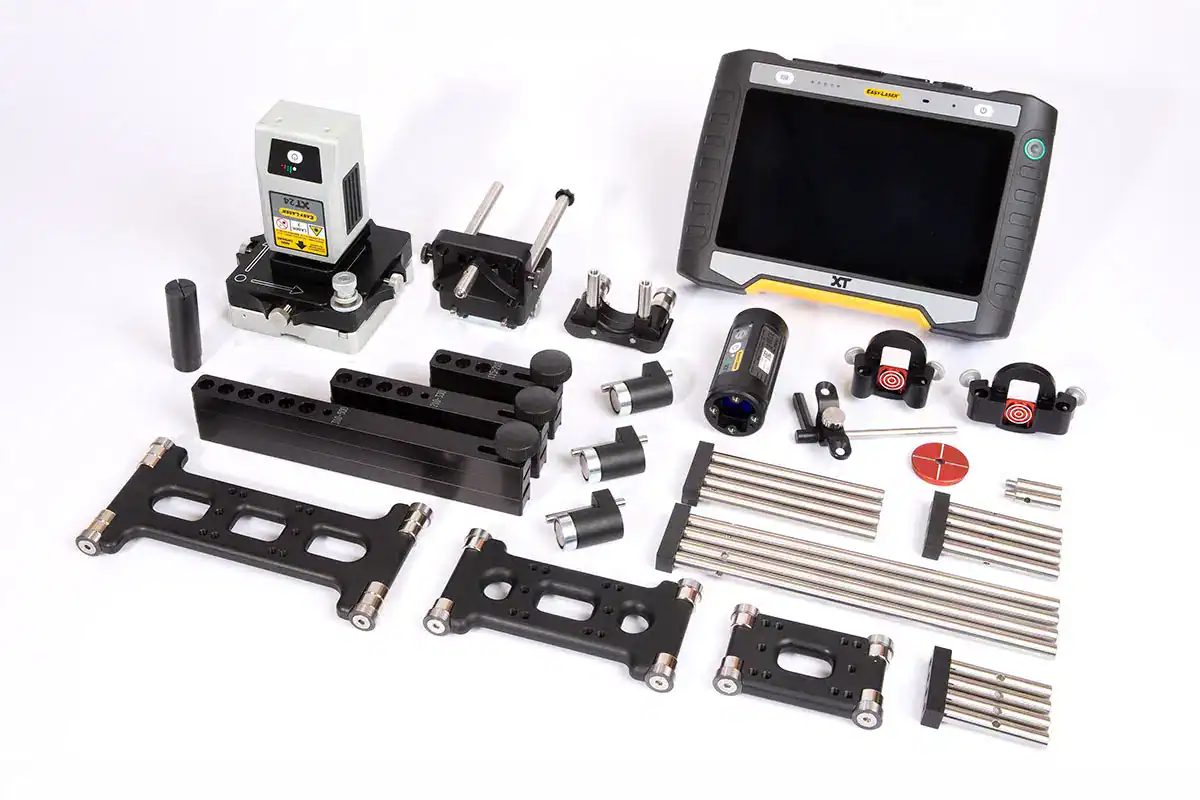

The Easy-Laser® XT950 Bore alignment system is used for the precise alignment of bore center lines, bearing journals, and cylindrical objects. Designed for applications such as engines, compressors, gearboxes and propeller drivelines, it accurately measures bore sizes between 80 and 500 mm (3.15–19.68 inches).

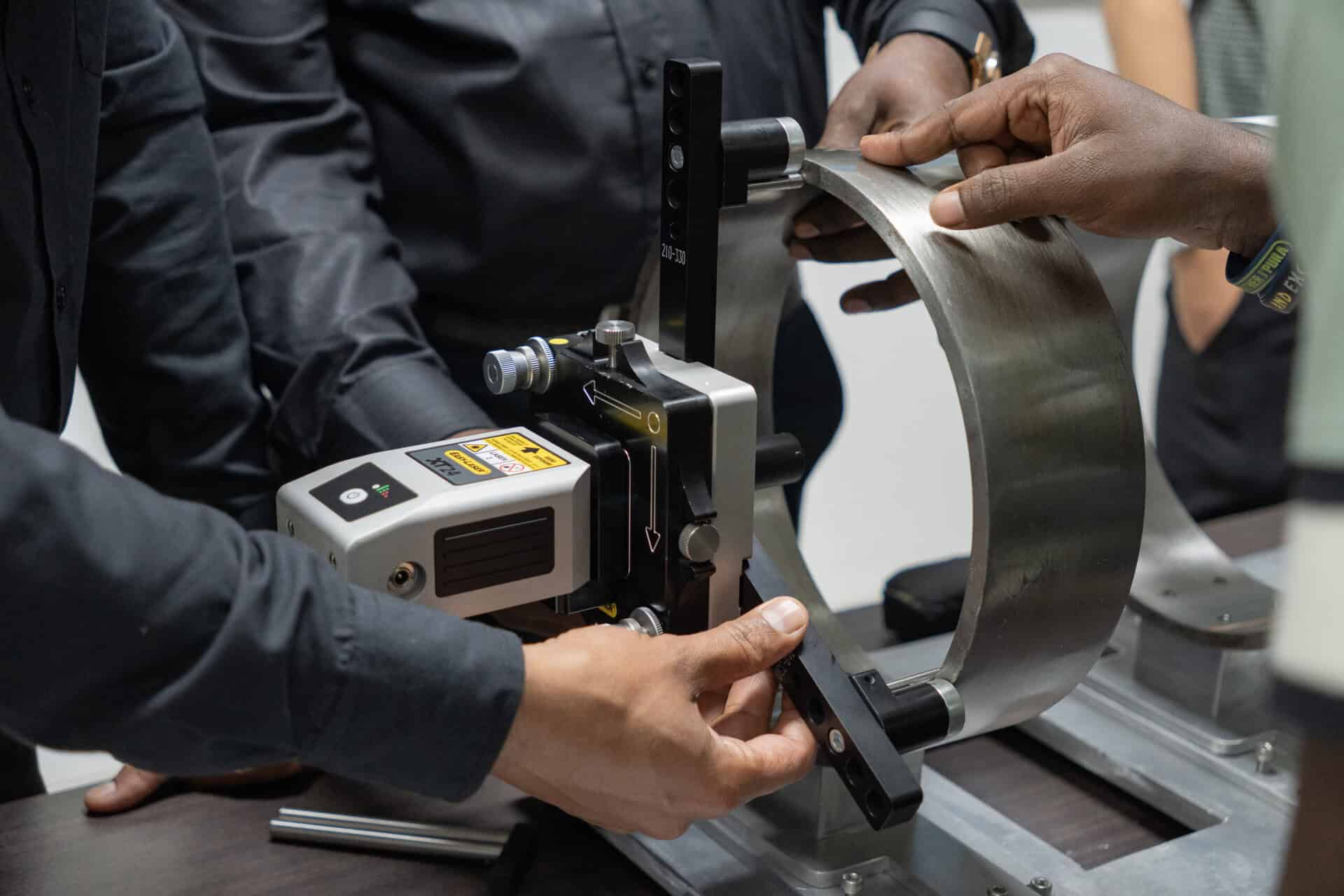

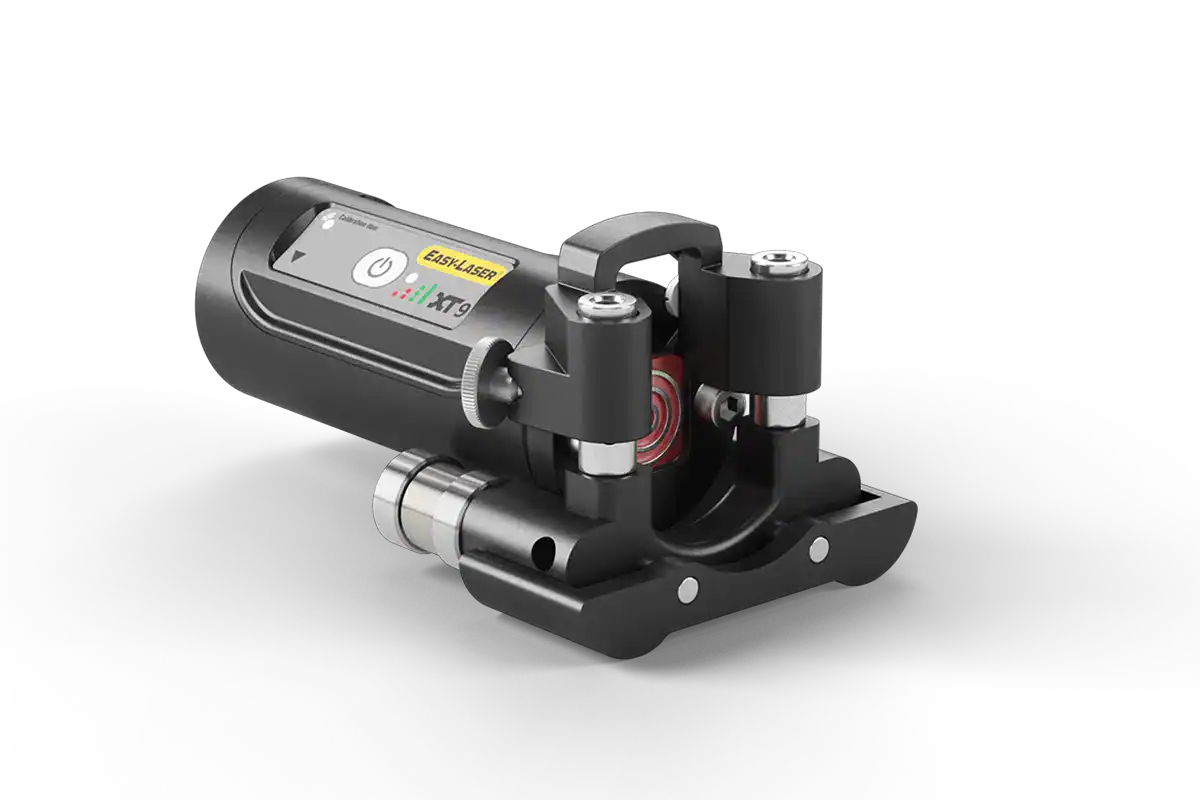

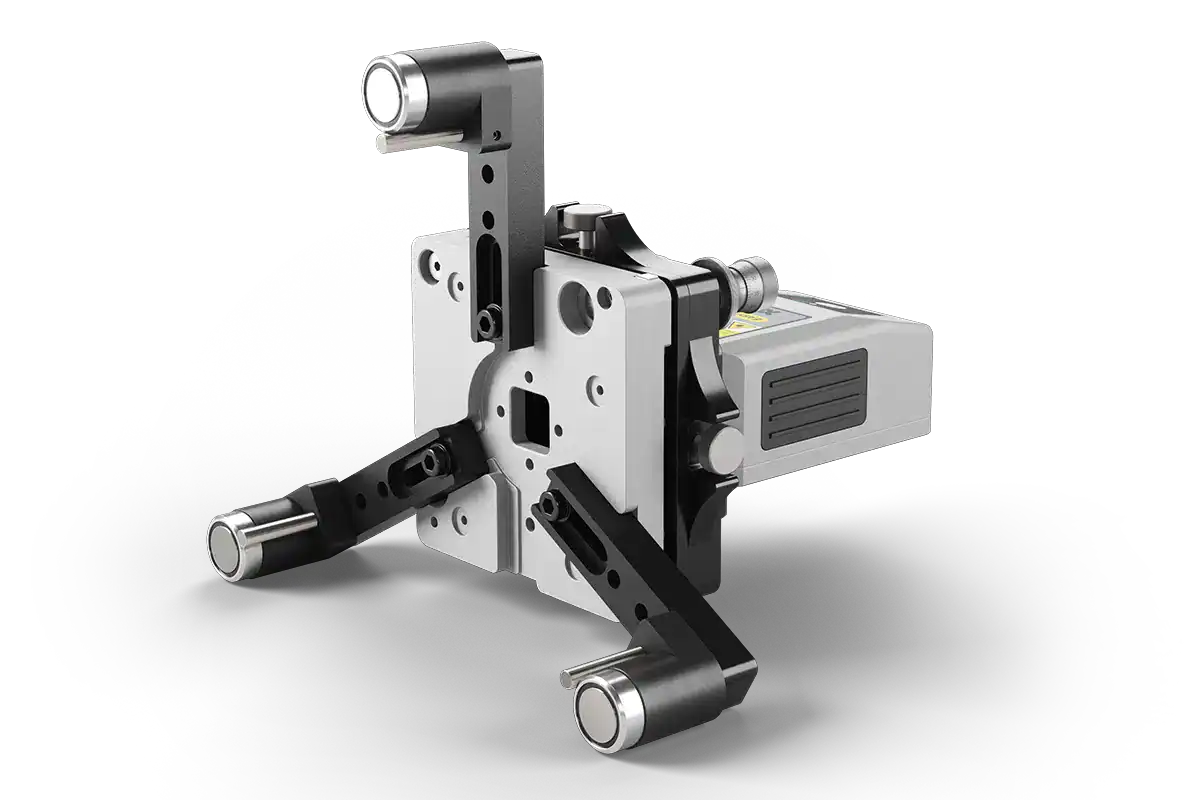

Different adaptable brackets makes the system highly versatile, and makes it easy to mount the detector in bores of varying diameters and widths. The magnetic feet hold the detector perfectly for stable and precise measurements.
Each component is crafted for maximum accuracy and stability, and ensures reliability with a resolution of 0.001 mm (0.05 mils) over distances up to 40 m (130 feet). This makes the system suitable for both manufacturing environments and field services.
