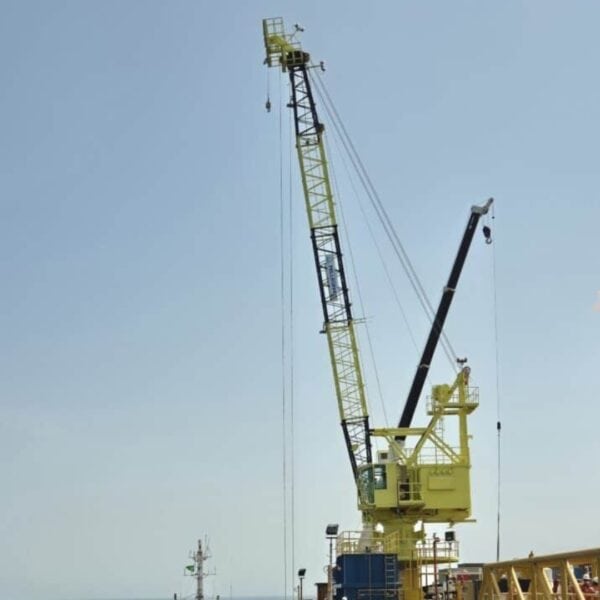

Lattice Boom Cranes

“GN 14-10” CHARACTERISTICS:

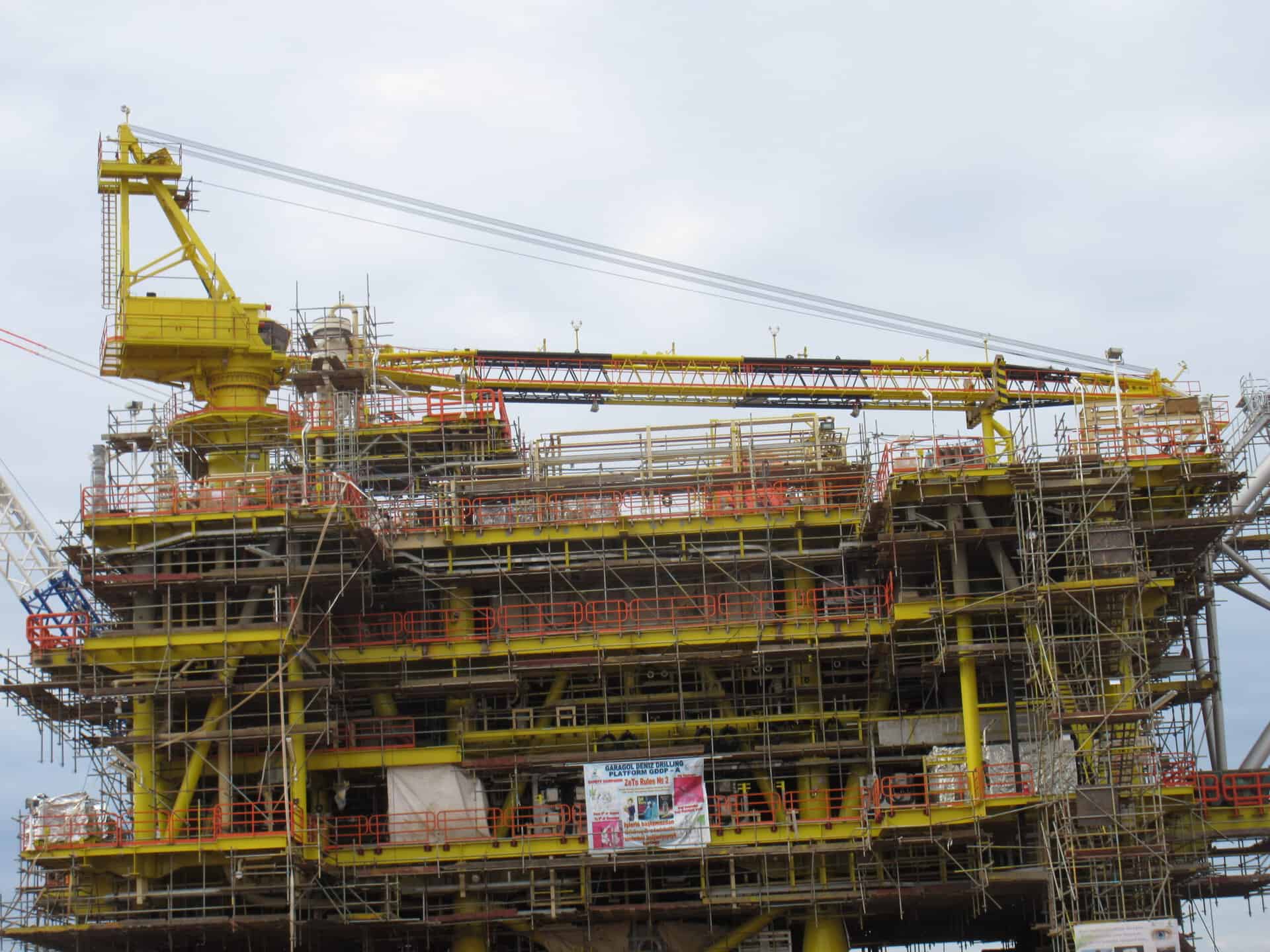

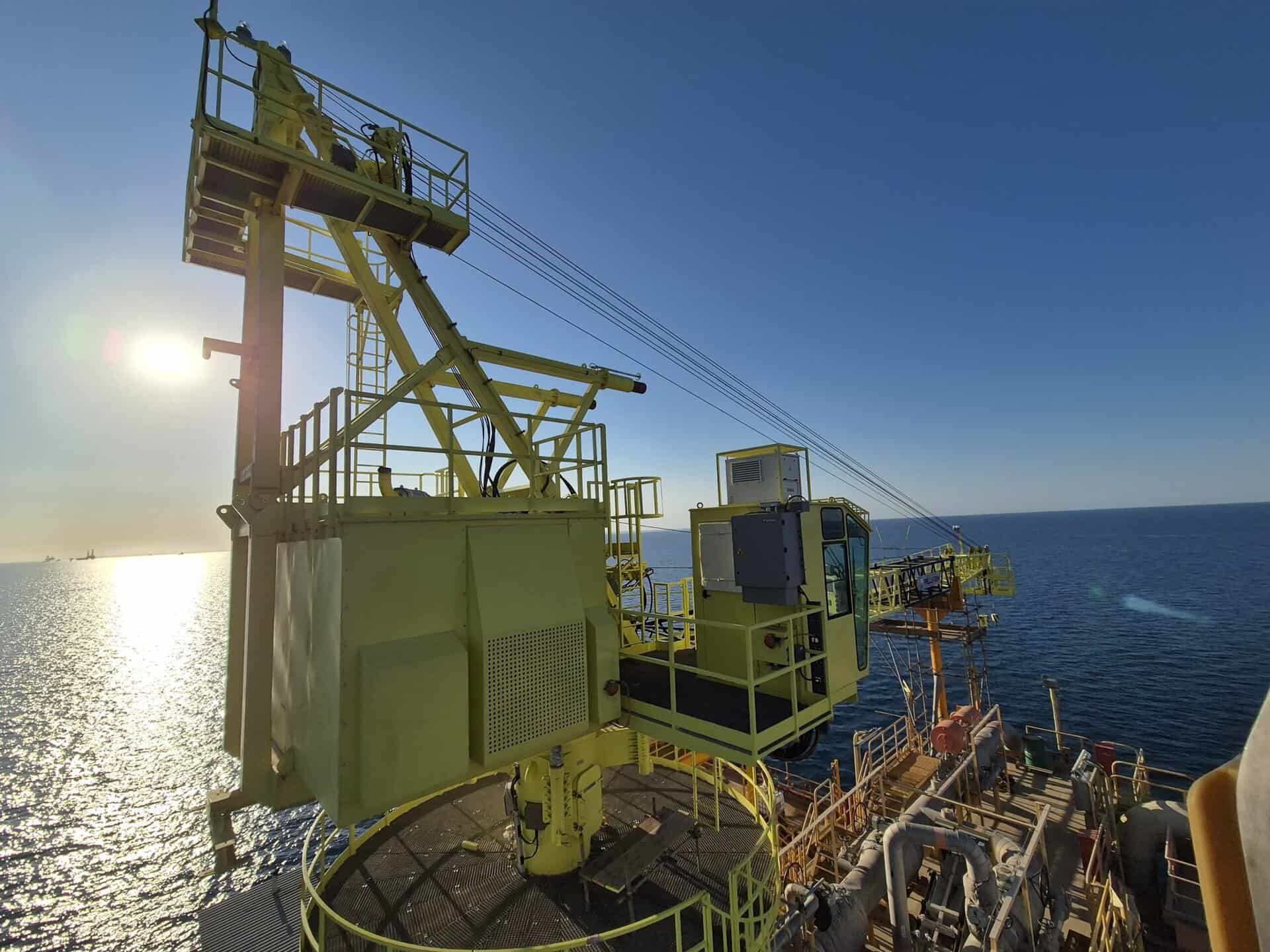

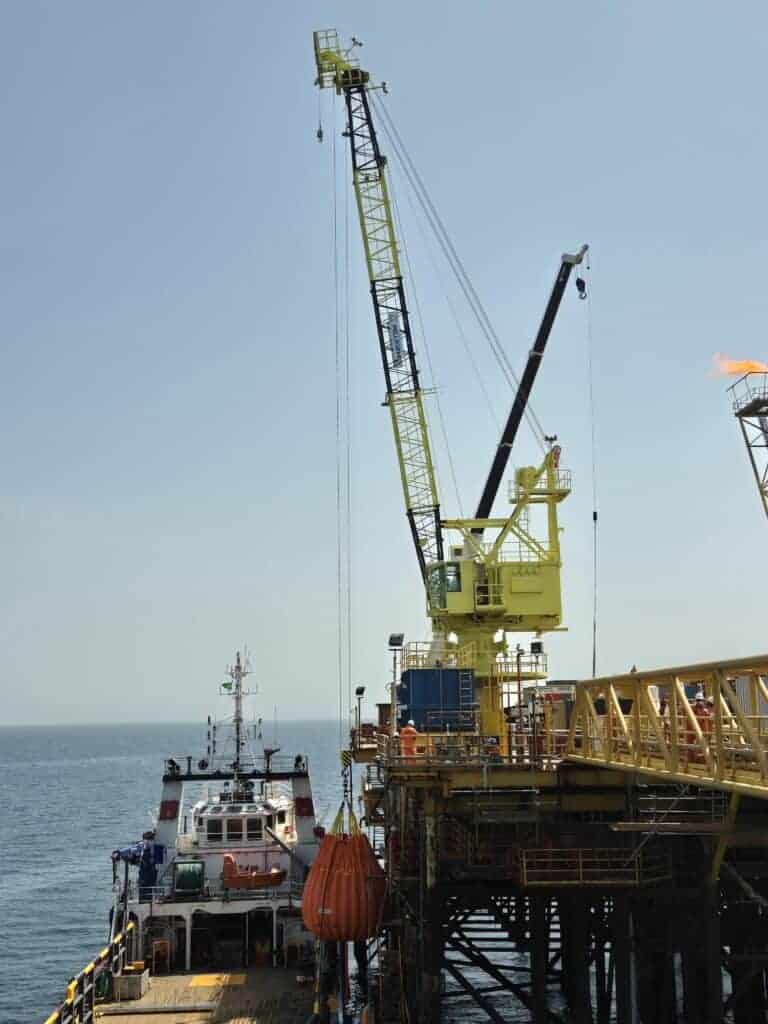

Diesel Hydraulic Self Contained lattice boom cranes installed on FP-NPP-NGP Fixed Platforms. The cranes are model GN 14/10.7 DH. The cranes are suitable for use in marine environment and is designed in accordance to API 2C and are used for load motion inside the Platform and from/to supply vessels. They are designed and certified as offshore cranes. The electric equipment installed on the cranes are suitable as minimum for Zone 2, IIA, T3 area classification. Electric components installed on the boom and on the pedestal are suitable for Zone 1, IIA, T3.

Additional Specs:

• API MONOGRAM
• Diesel engine prime mover for HPU
• Minimum design temperature: -17°C
• Electrical components on boom and instruments ATEX certified (Zone1, IIA, T3)
• Main winch: SWL 10t
• Aux winch: SWL 3t
• Personnel lifting: SWL 0.75t
• Max working radius: 41 m
